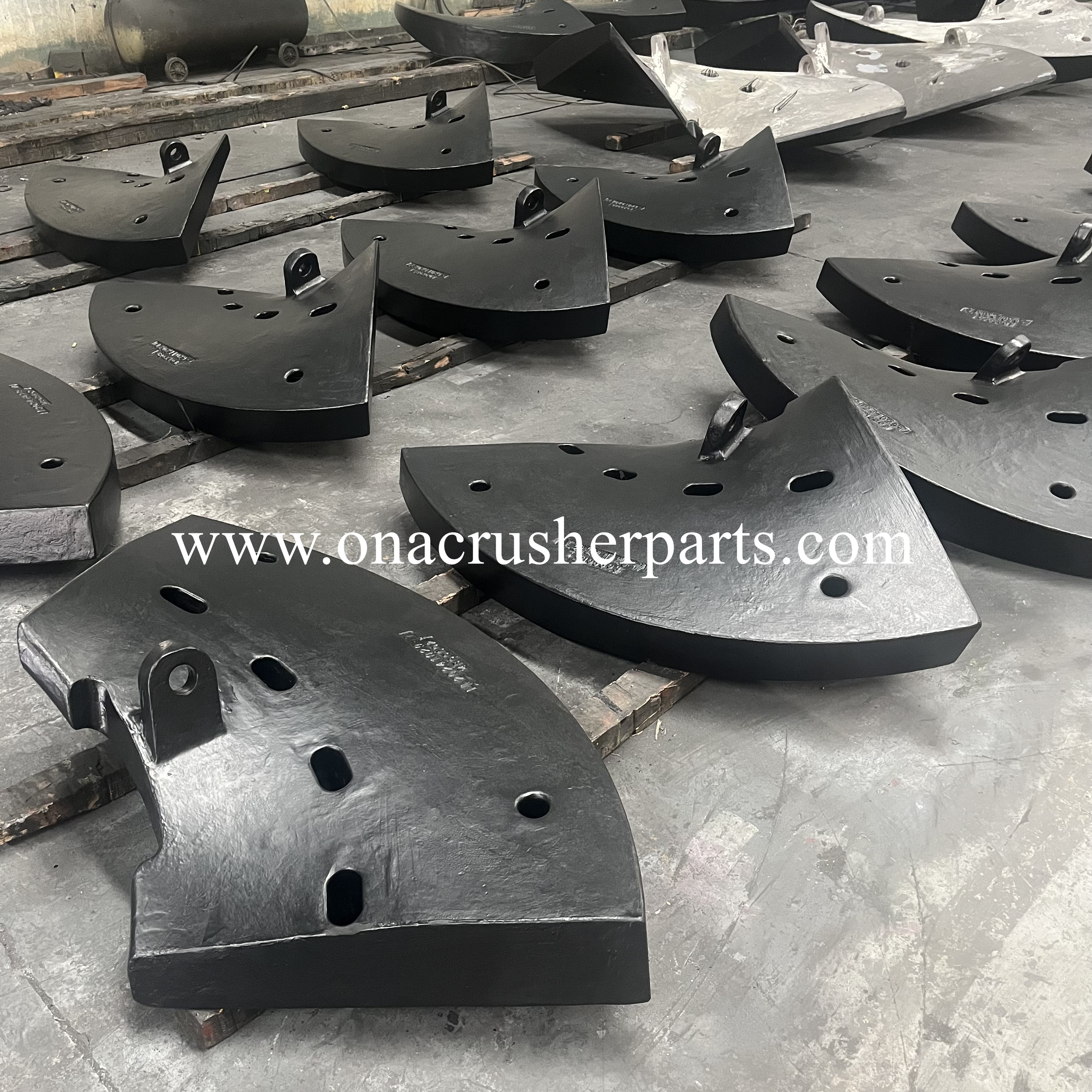

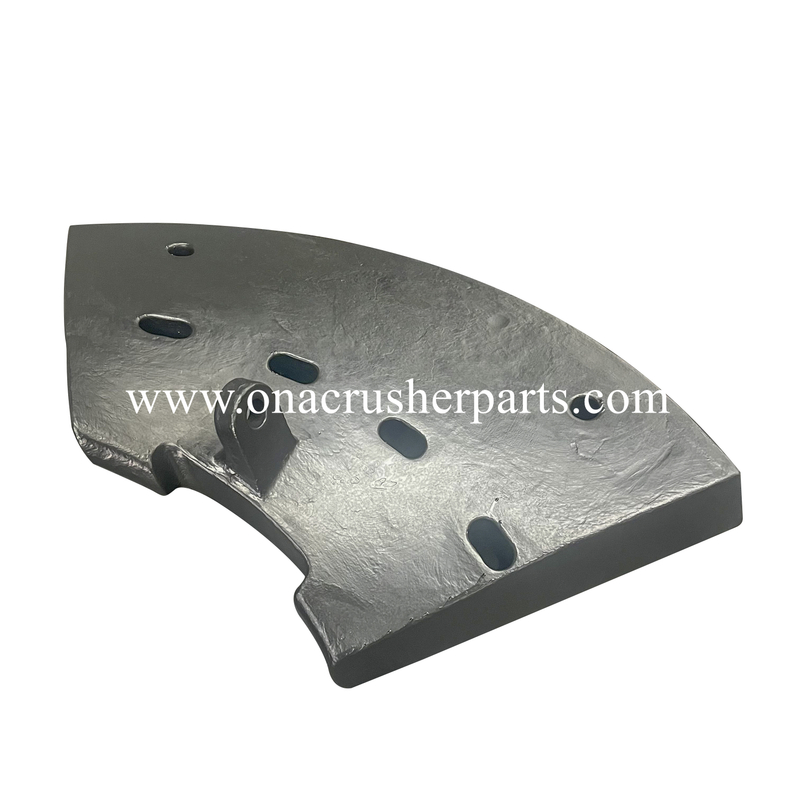

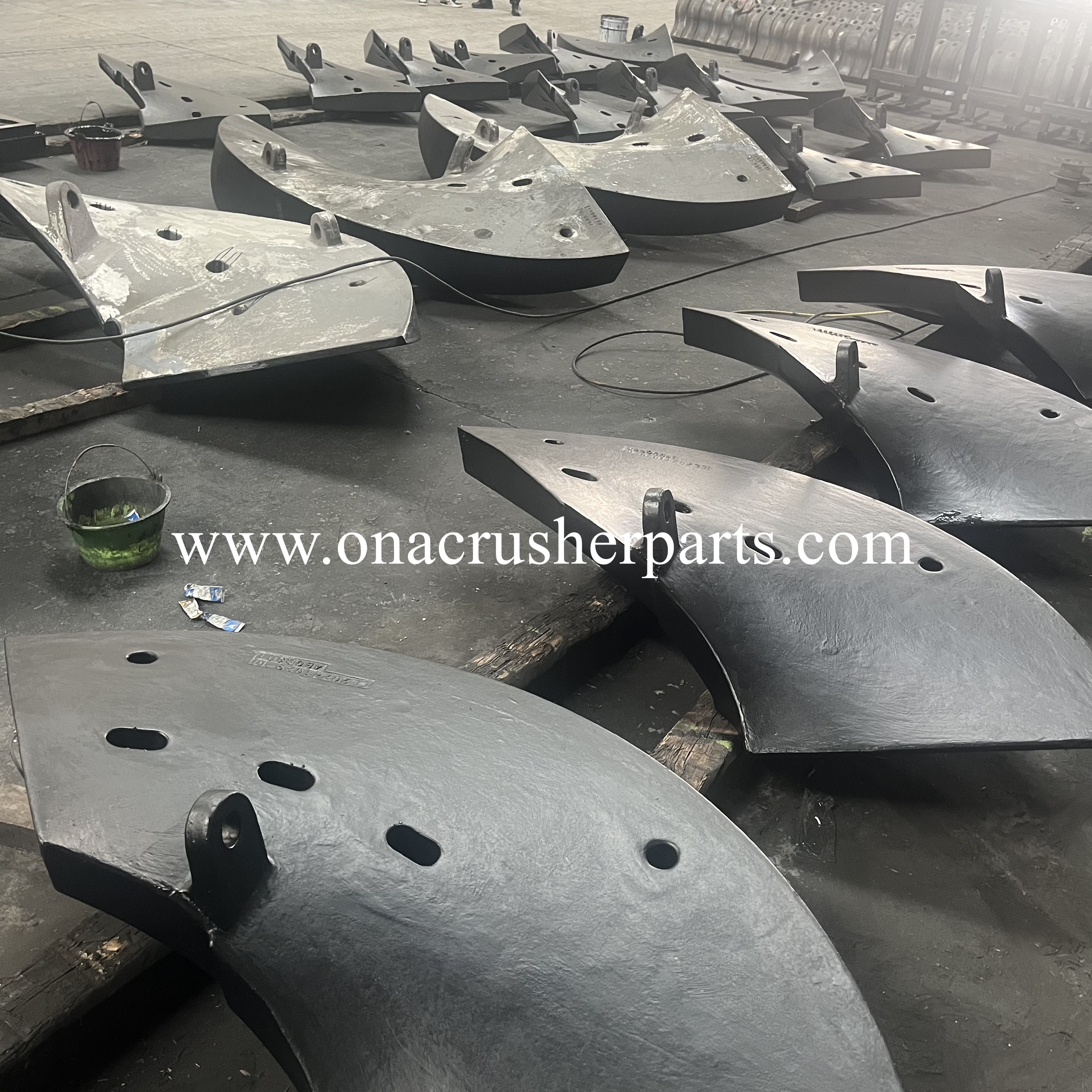

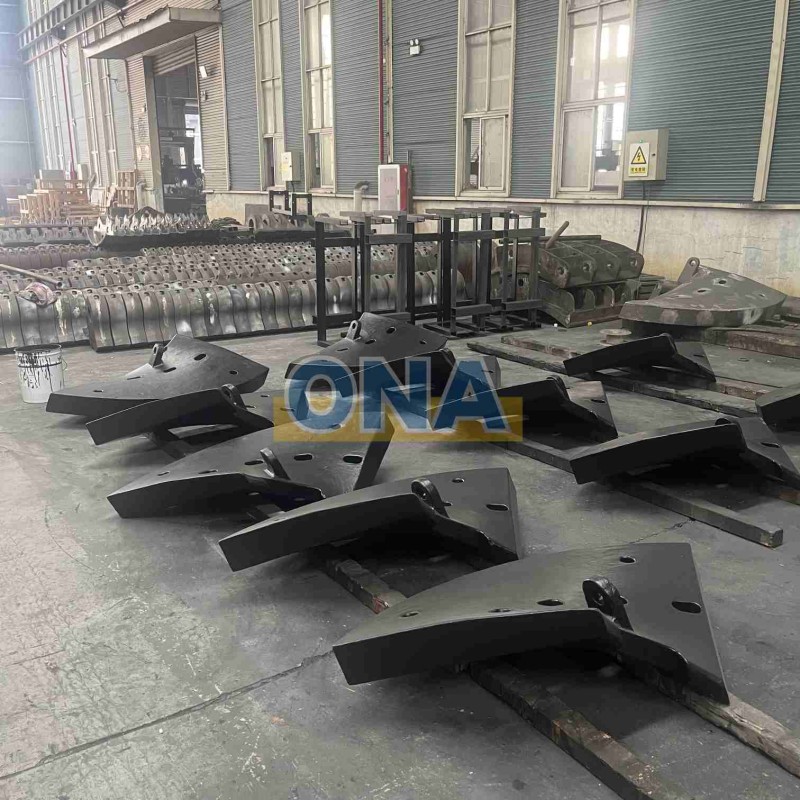

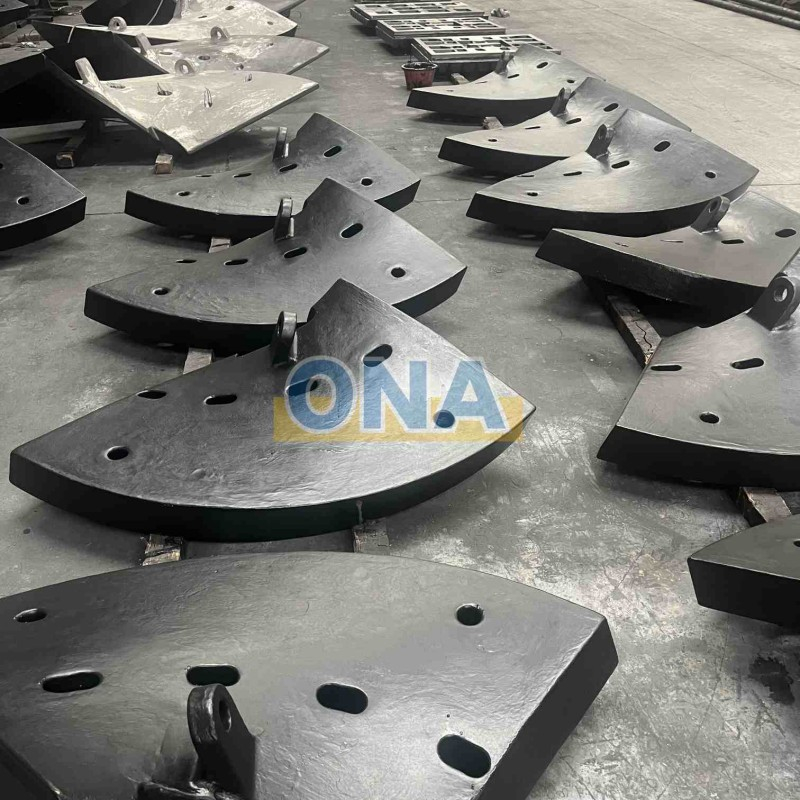

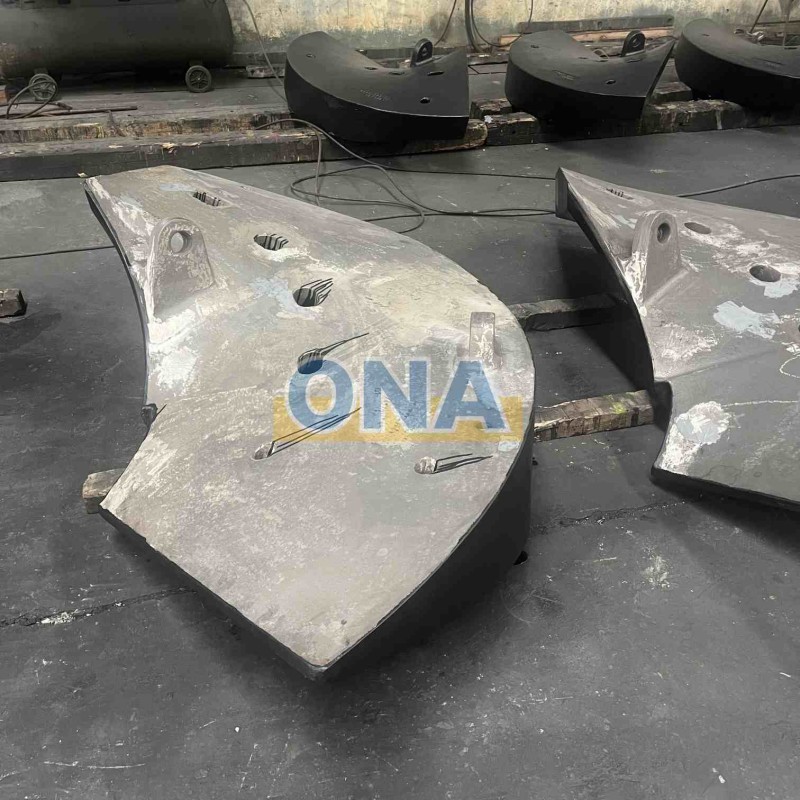

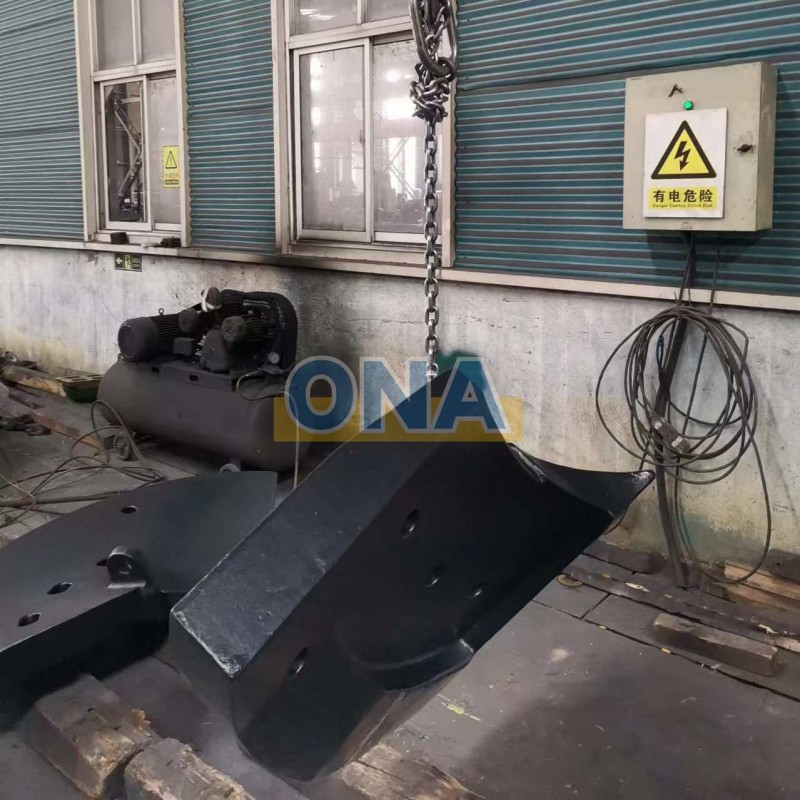

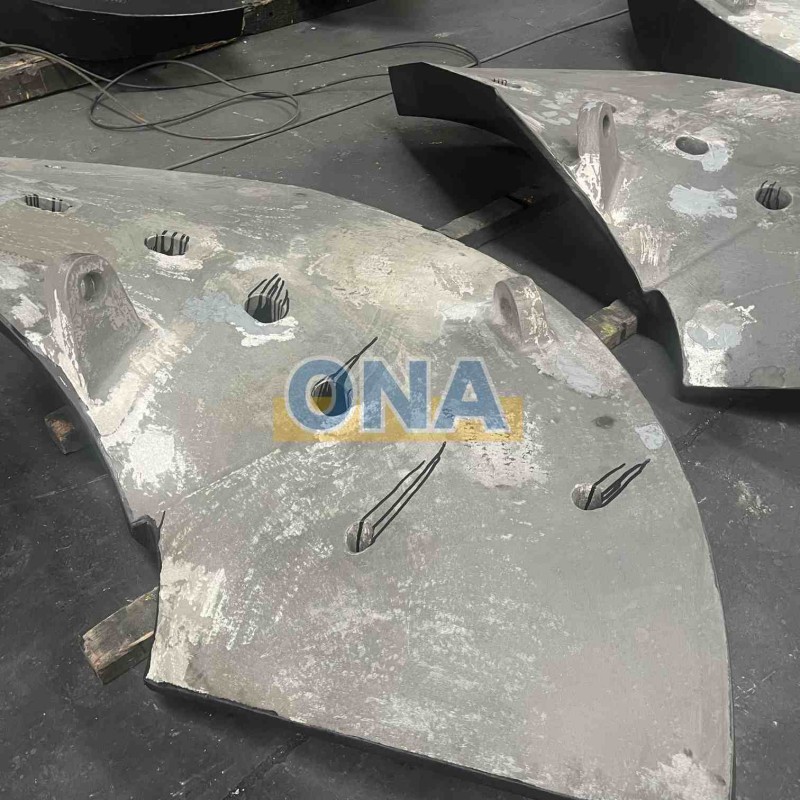

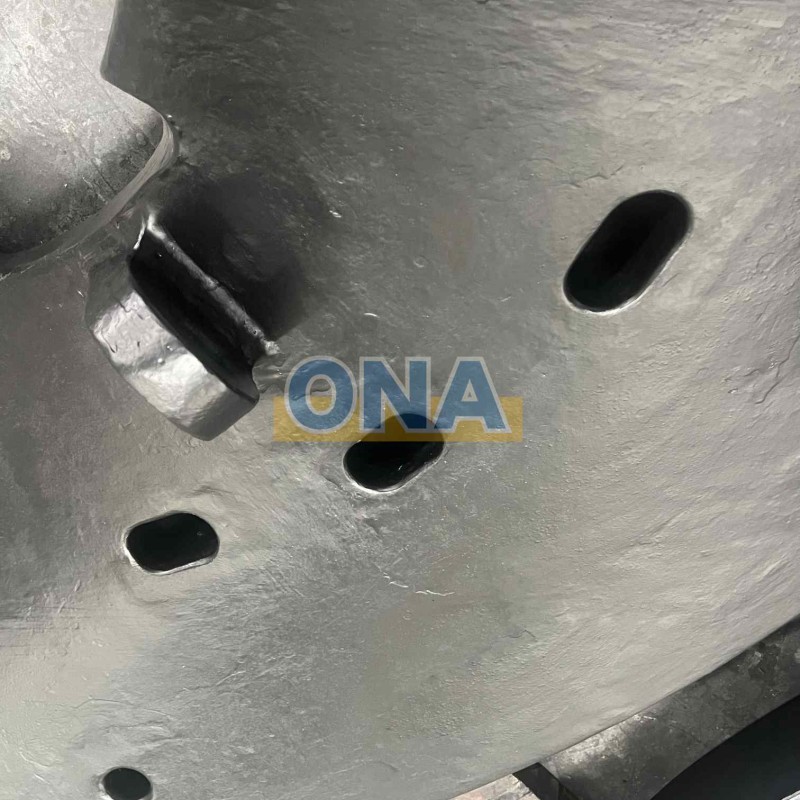

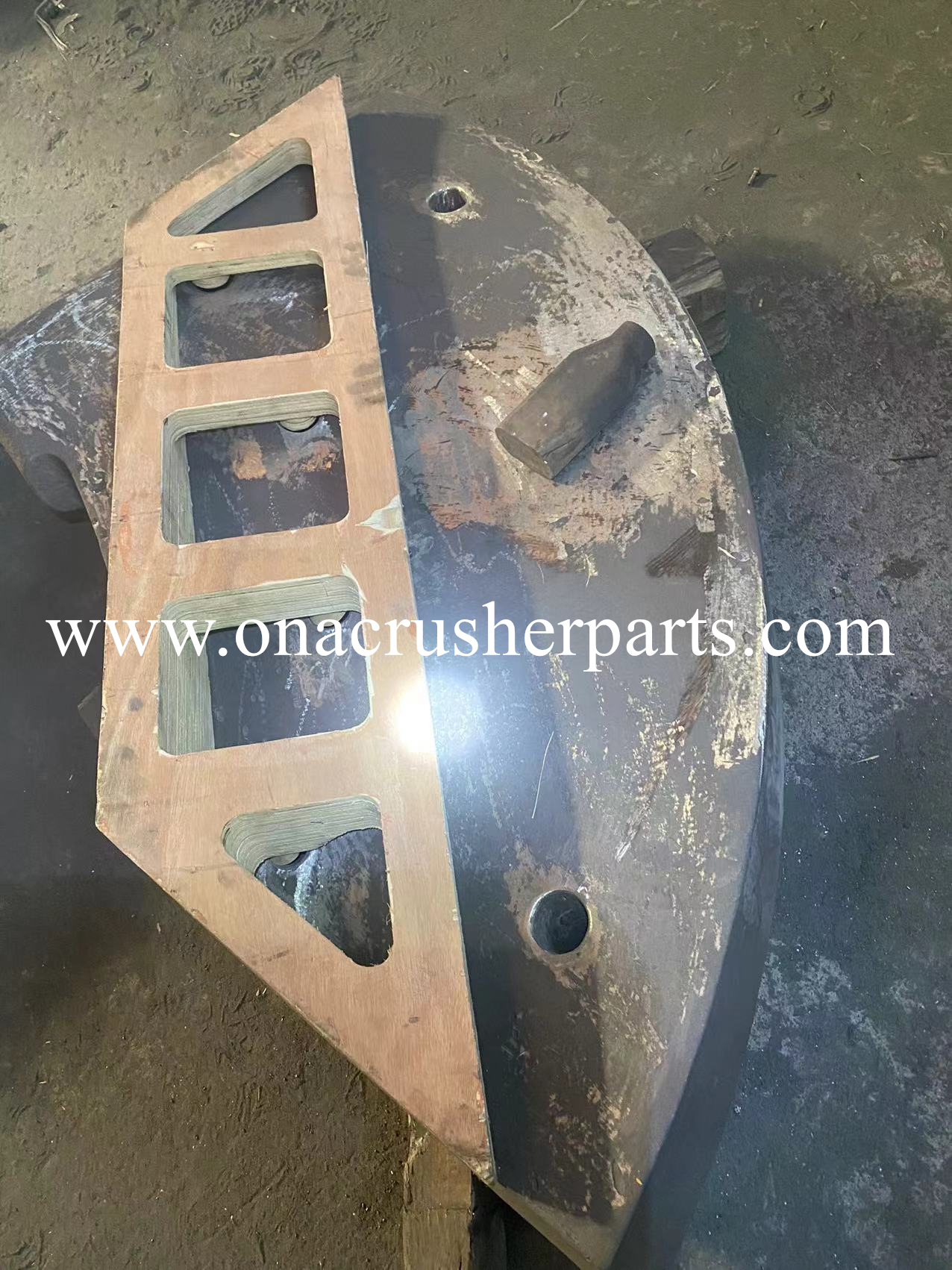

Wear-resistant cast iron vertical tower mill liner is made of high chromium cast iron with excellent wear resistance. This liner is mainly used in mining applications, such as quarries and ore mining sites.
It is designed to fit perfectly with the vertical tower mill, providing efficient and durable performance. The material ensures a long service life and minimizes maintenance needs.
Custom colors and sizes can be customized to meet specific project requirements. Each unit undergoes a rigorous manufacturing process including forging, machining and surface treatment to ensure high durability.
The liner is safely shipped in iron pallet packaging with a minimum order quantity of only one piece. All products meet OEM standards and come with video factory inspection and mechanical test reports for added assurance.
| Parameter | Value |
|---|---|
| Material | High chromium cast iron with excellent wear resistance |
| Processing Method | Casting |
| Application | Used in ore mining, including quarries, mines, etc. |
| Compatible Machine | Vertical Tower Mill |
| Advantages | Strong wear resistance, long service life |
| Color | Customizable |
| MOQ (Minimum Order Quantity) | 1 piece |
| Packaging | Iron pallet packaging |
| Quality Assurance | 100% OEM standard compliance |
| Manufacturing Process | Forging + Machining + Surface Treatment |
| Product Features | Smooth appearance, long service life |
| Weight | 50 kg |
| Other Services | Video factory inspection and mechanical testing reports |
Features of Wear Resistant Cast Iron Vertical Tower Mill Liner
Compatibility: Suitable for vertical tower mills of various specifications.
Design: Designed for mills with vertical cylinders, spiral blades and drive mechanisms.
Manufacturing Process: Forging, machining and surface treatment ensure durability.
Appearance: Smooth surface, longer performance and service life.
Advantages of Wear Resistant Cast Iron Vertical Tower Mill Liner
Certification: ISO9001 and CE certification, quality assurance.
Quality Tests: Hardness test, metallographic structure, mechanical properties, ultrasonic, infrared carbon and surface analysis.
Durability: strong wear resistance, long service life, low risk of breakage in harsh environments.
Applications of Wear Resistant Cast Iron Vertical Tower Mill Liner
Vertical Tower Mill: essential for grinding and milling in mining operations.
Mining Industry: mining equipment for ore processing.
Material Processing: suitable for high wear environments and severe wear conditions.
FAQs of Wear Resistant Cast Iron Vertical Tower Mill Liner
1.What material is used for wear-resistant cast iron vertical tower mill liner?
The lining is made of high chromium cast iron, ensuring excellent wear resistance.
2. What is the main application of this vertical tower mill liner?
It is mainly used in the mining industry, especially vertical tower mills.
3. Can the vertical tower mill liner be customized?
Yes, we provide customization according to customer specifications and drawings.
4. What quality assurance measures are there for wear-resistant cast iron vertical tower mill liner?
The product is ISO 9001 certified and has undergone hardness testing, metallographic analysis and other quality inspections.
5. Which industries use vertical tower mill liner?
It is widely used in mining, metallurgy and other industries that require high wear-resistant materials.
Our high chrome solutions include:
Spiral and end bushings protect the permanent screw from wear and increase the grinding efficiency of the VTM,
High chrome grinding media, combined with a martensitic structure and hard chrome carbides, provide optimal wear and galling resistance.
They are typically made from common high-chromium cast iron and can be optimized to extend their life by more than 30%.
Chemical Composition Report
| Material | C | Si | Mn | P | S | Cr | Ni | Mo | Result |
| High chromium cast iron | 3.15 | 0.524 | 0.923 | 0.027 | 0.025 | 19.5 | 0.459 | 1.04 | Acc |
| High chromium cast iron | 3.04 | 0.546 | 0.967 | 0.027 | 0.028 | 19.29 | 0.372 | 1.03 | Acc |
| High chromium cast iron | 3.09 | 0.604 | 0.866 | 0.025 | 0.027 | 19.46 | 0.362 | 1.08 | Acc |
| High chromium cast iron | 3.14 | 0.616 | 0.89 | 0.027 | 0.033 | 19.47 | 0.506 | 1.1 | Acc |

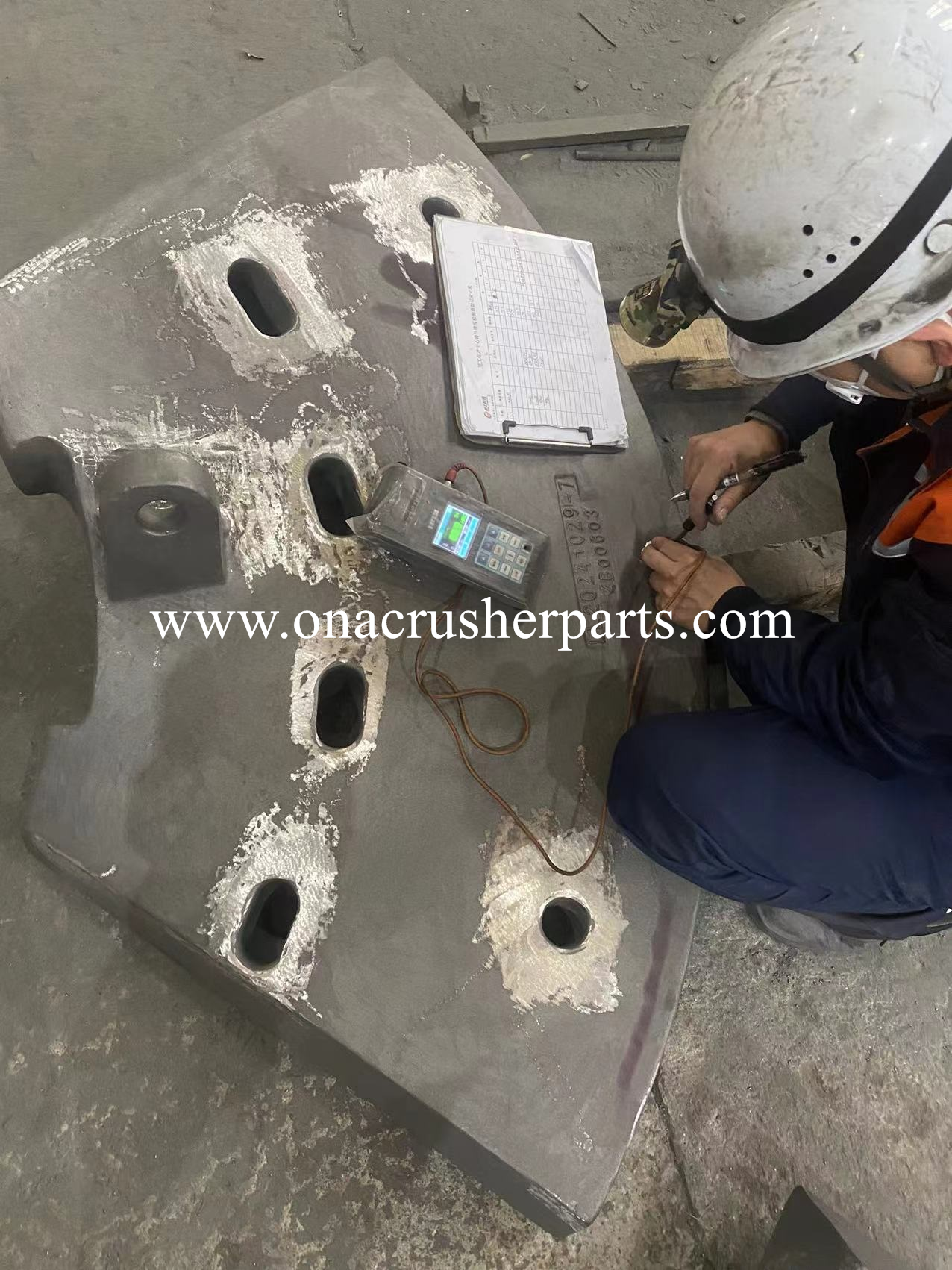

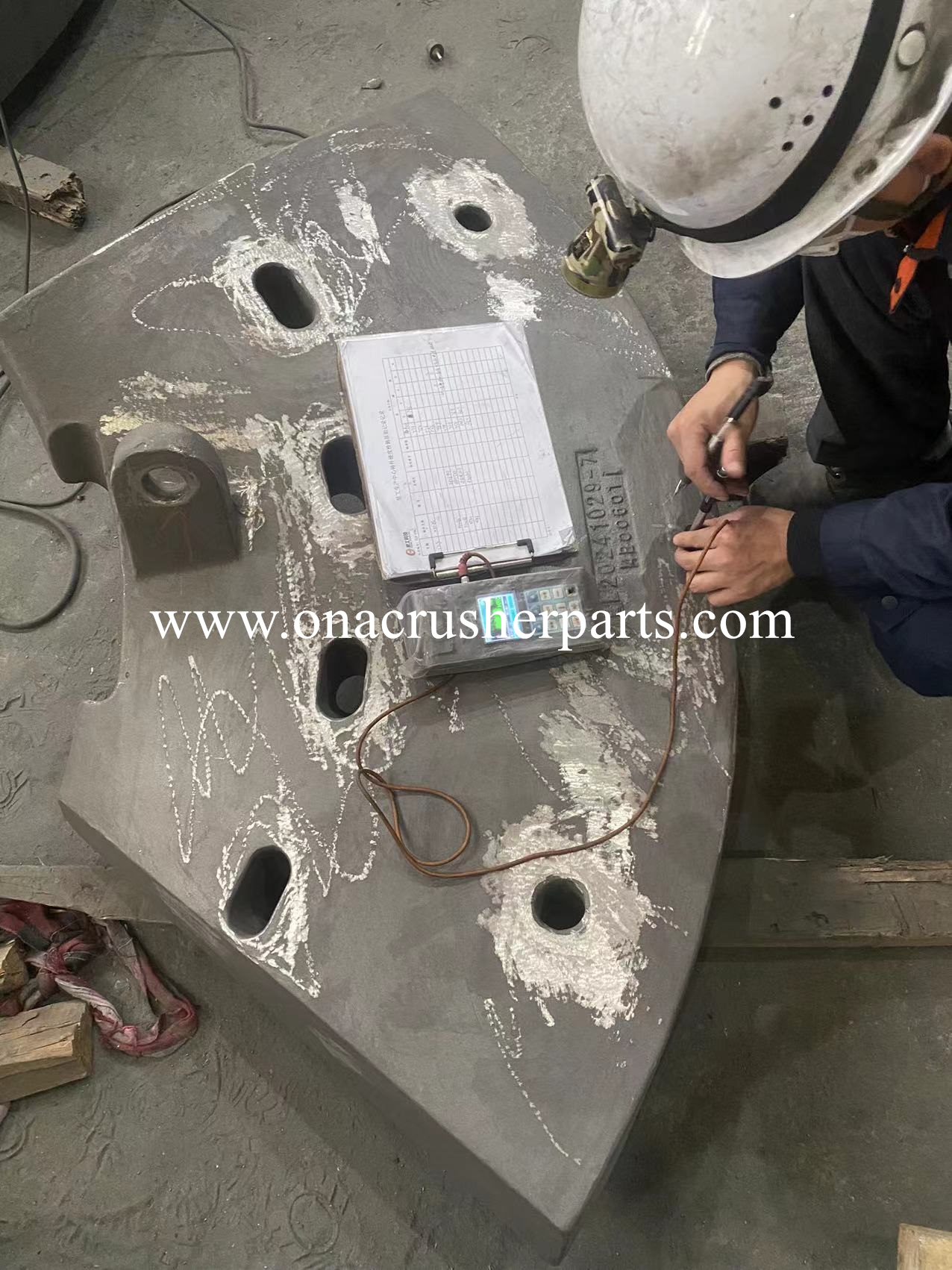

Hardness Test Report
| Supplier | SN | Material | HRC |
| 欧纳 ONA | 4B00601 | High chromium cast iron | 63.6 |
| 欧纳 ONA | 4B00602 | High chromium cast iron | 63.8 |
| 欧纳 ONA | 4B00603 | High chromium cast iron | 63.2 |
| 欧纳 ONA | 4B02001 | High chromium cast iron | 62 |
| 欧纳 ONA | 4B02002 | High chromium cast iron | 63.1 |
| 欧纳 ONA | 4B02003 | High chromium cast iron | 63 |
| 欧纳 ONA | 4B03401 | High chromium cast iron | 63.7 |
| 欧纳 ONA | 4B03402 | High chromium cast iron | 63.4 |
| 欧纳 ONA | 4B03403 | High chromium cast iron | 63.1 |
| 欧纳 ONA | 4B08801 | High chromium cast iron | 62.7 |
| 欧纳 ONA | 4B08802 | High chromium cast iron | 62.4 |
| 欧纳 ONA | 4B08803 | High chromium cast iron | 64 |

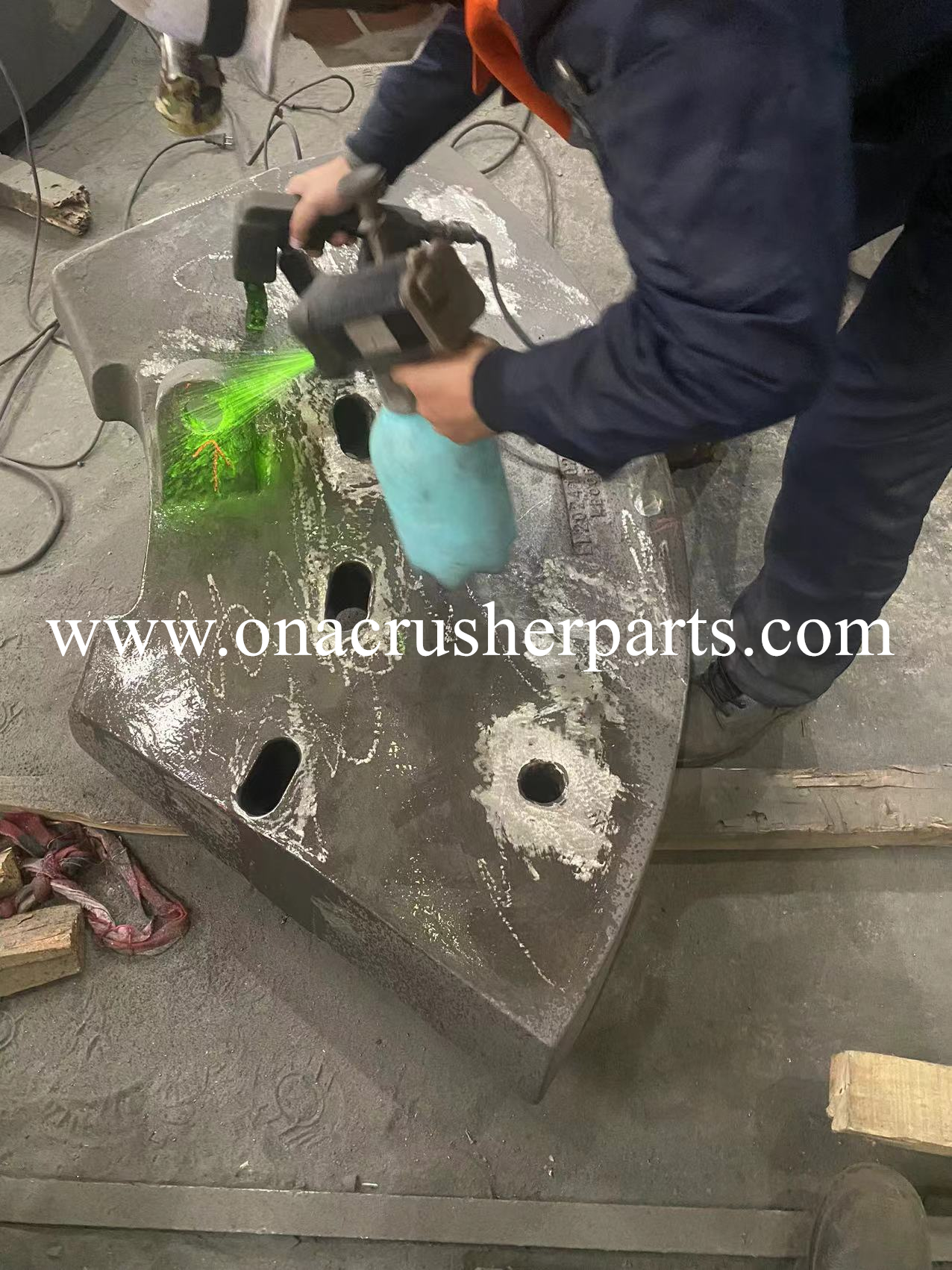

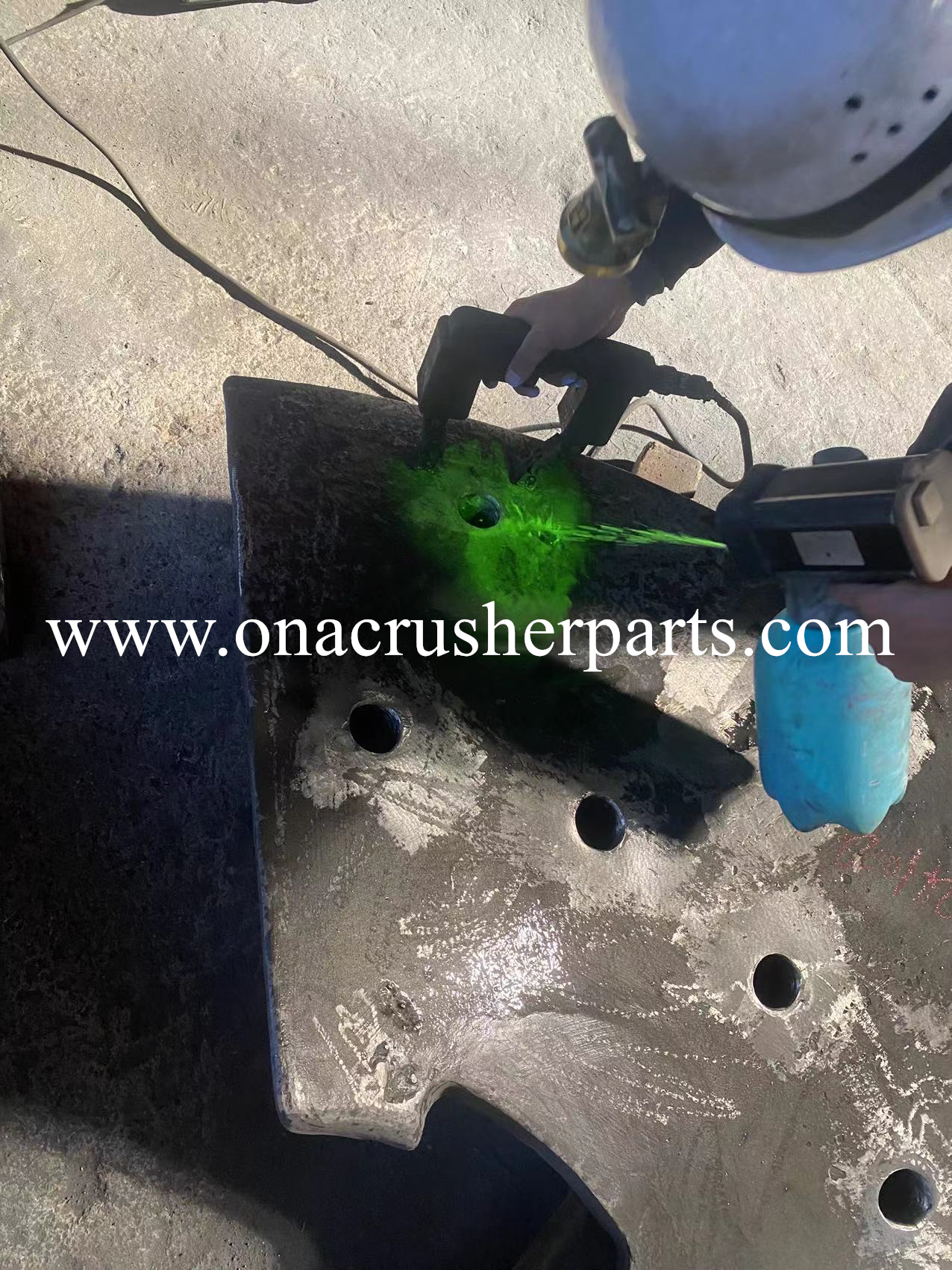

Magnetic Particle Examination Report
| 名称： | LINER | 数量： | 12 | ||
| Part Name: | Quantity: | ||||
| 设备型号： | CJE-2A | 灵敏度试块： | A1(30/100) | ||
| Equipment model: | Sensitivity Block: | ||||
| 磁悬液类型： | 荧光磁悬液 | 磁化方法： | 磁轭法 | ||
| Magnetical Liquid type: | Fluorescent magnetic suspension | Magnetization method: | MT YOKe | ||
| 电流大小： | 6A | 电流种类： | 直流 | ||
| Current Size: | current Type: | DC | |||
| 检测部位： | 100% | 表面状态： | 毛坯 | ||
| Detection of parts: | Surface states: | Rough | |||
| Inspection standard: | ASTM E709 E125-2008 Grade 3 | ||||
| Result: | ■Accept □ Reject | ||||

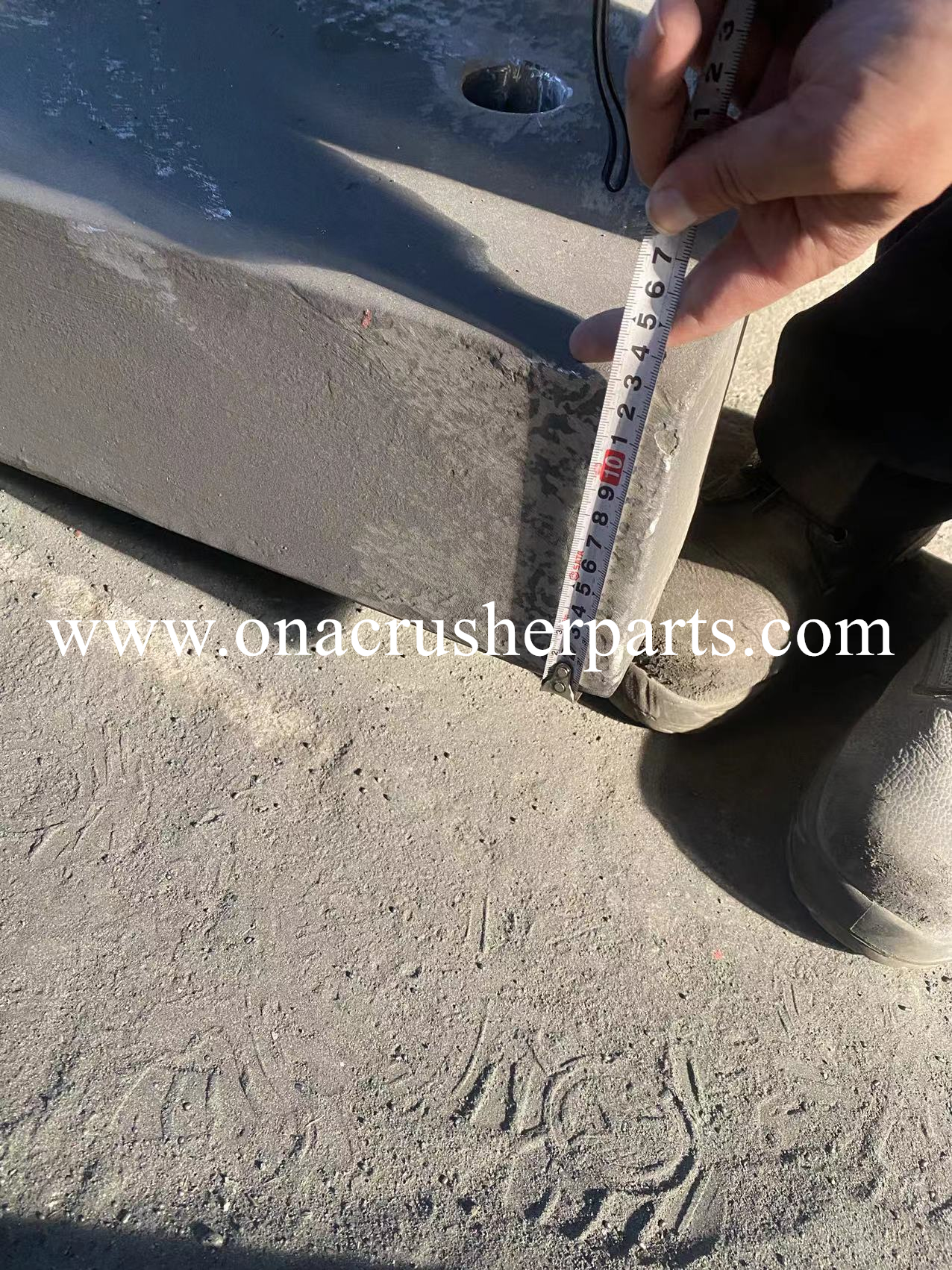

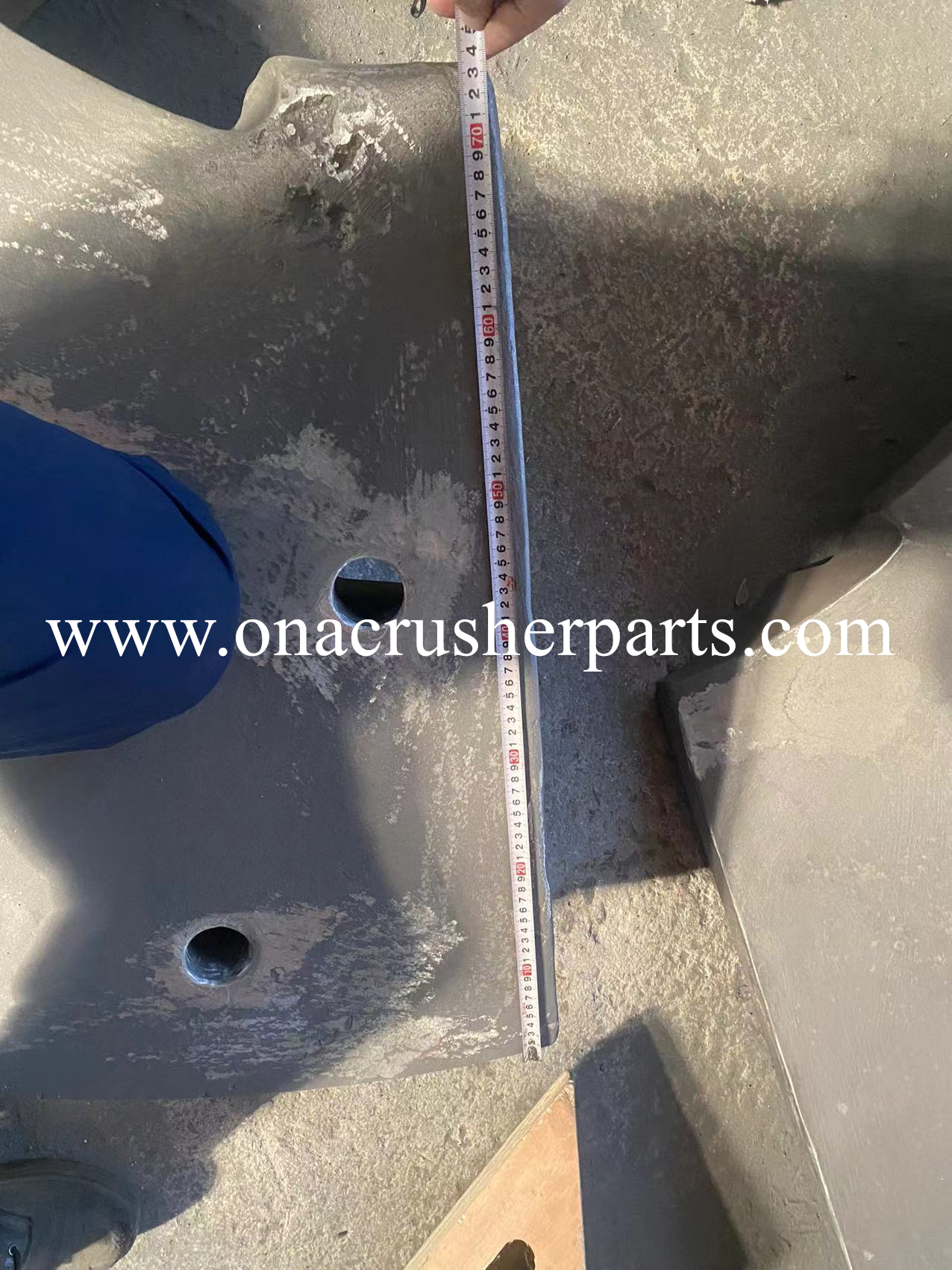

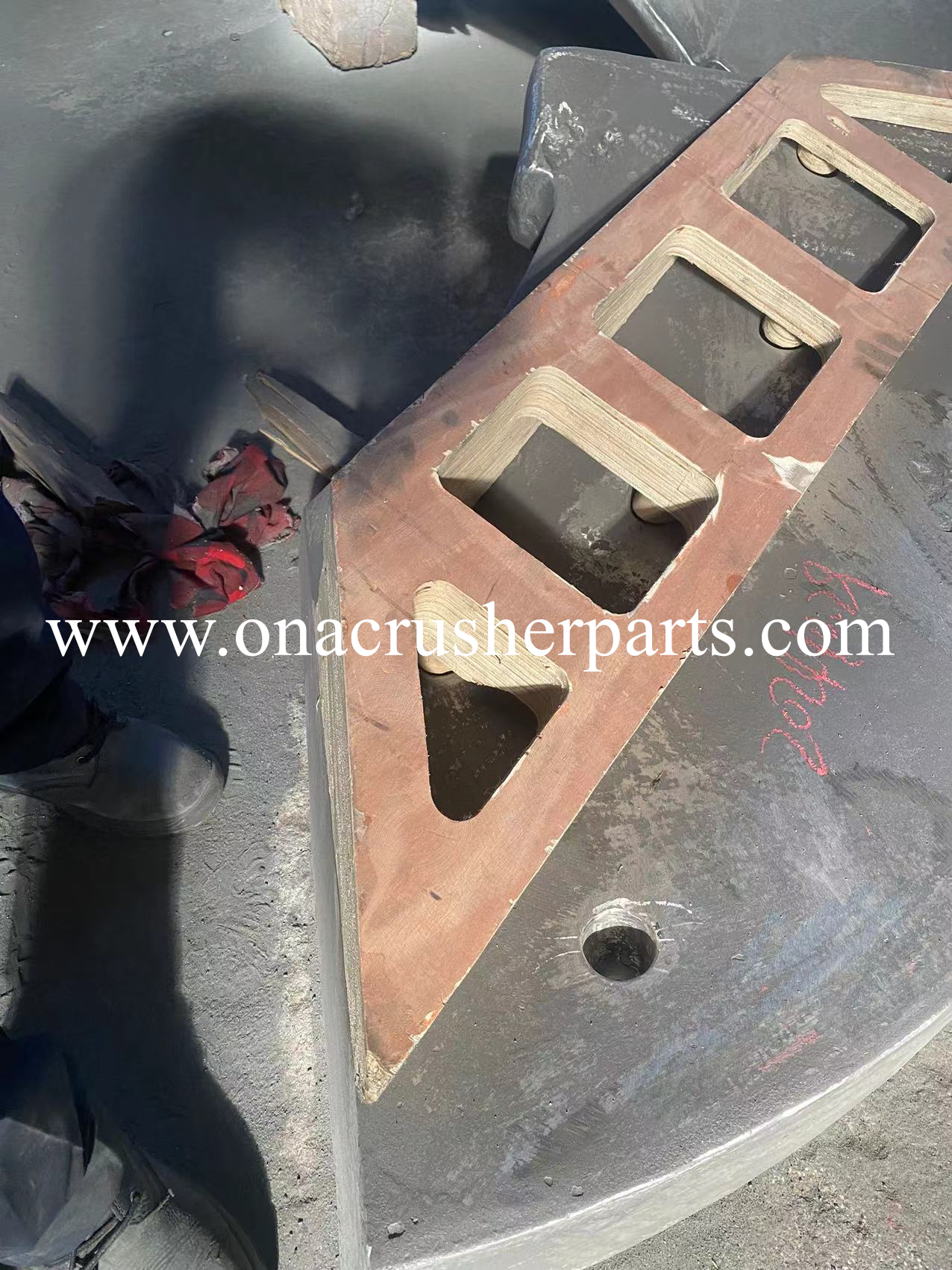

Layout Report
| PN: | LINER | Page: | 1 | Rev. | |
| Date: | 2024.12.23 | Material: | High chromium cast iron | Quantity: 12 | |
| Item No | Drawing Characteristics with Tolerance | Actual Results（mm）- SN | A/U (Accept/ unaccept) | ||
| mm | Tolerance | 4B00601 | 4B02002 | ||
| 1 | 86 | ±4 | 86 | 85 | A |
| 2 | 47 | ±3 | 47.5 | 47.5 | A |
| 3 | 47 | ±3 | 47.5 | 47.5 | A |
| 4 | 22 | ±3 | 22 | 22 | A |
| 5 | 110 | 110 | 111 | A | |
| 6 | 40 | 41 | 41 | A | |
| 7 | 2-φ45 | 45 | 45 | A | |
| 8 | φ45 | 45 | 45 | A | |
| 9 | 130 | 130 | 129 | A | |
